TURBINE

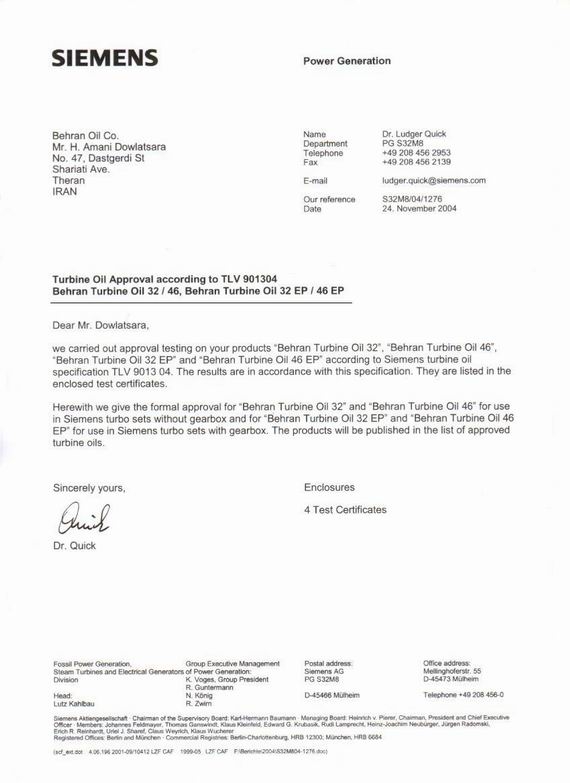

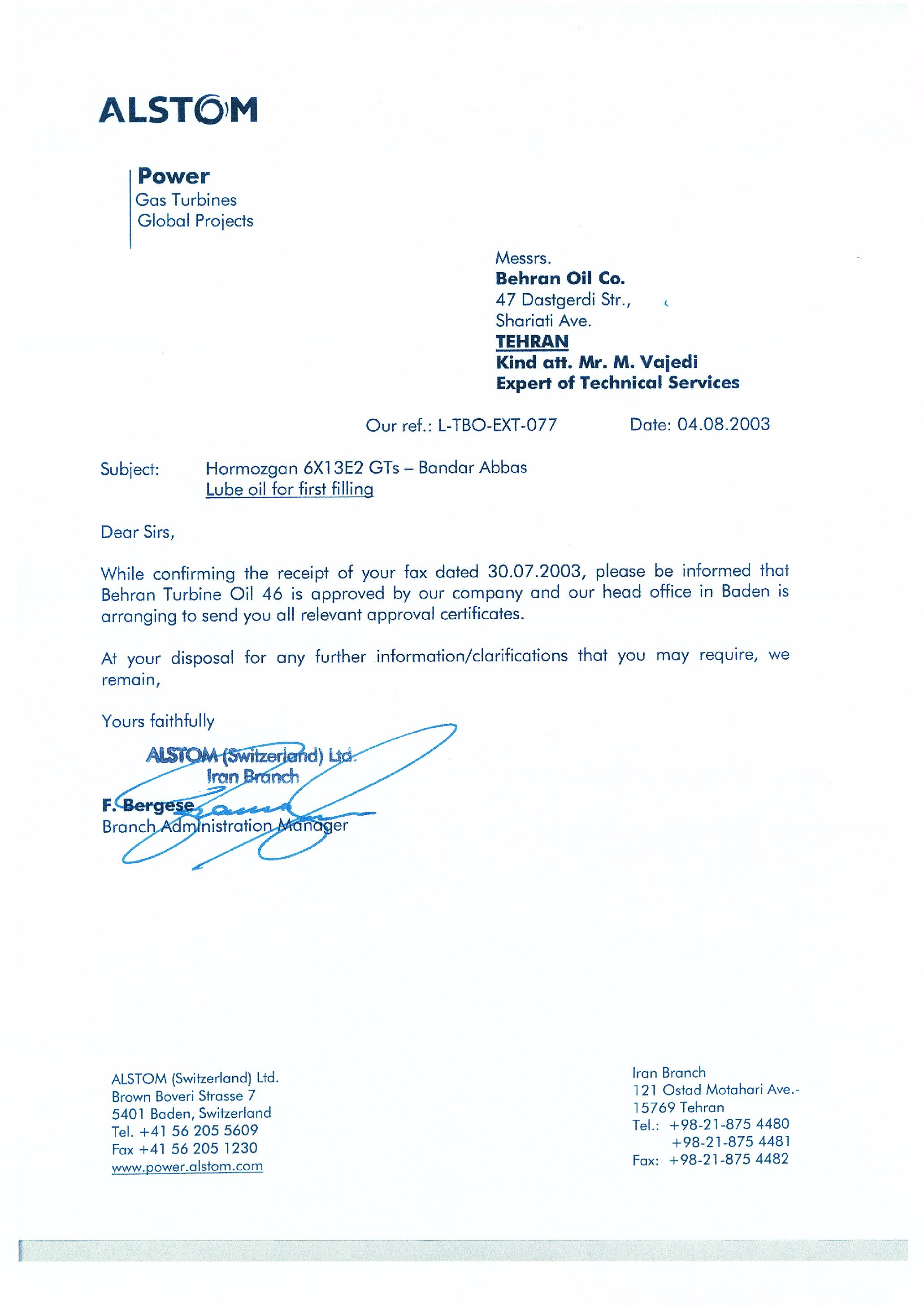

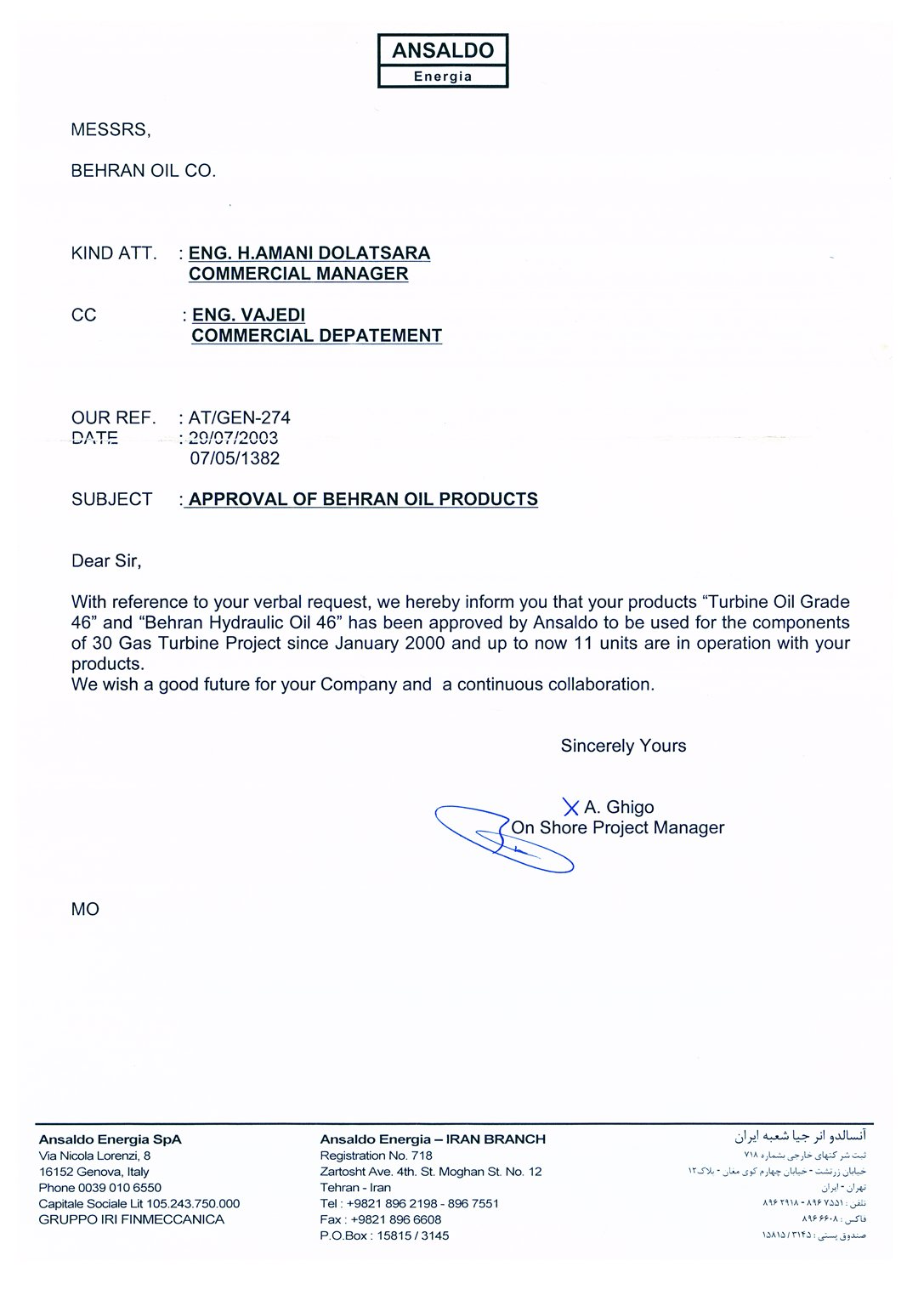

Approved by Alstom,Ansaldo Energia and Siemens
USES
Turbines are critical pieces of equipment and their lubrication calls for only the highest quality products. Behran Turbine oils are premium quality products. Formulated for use in gas, steam and water turbines.The lubricants requirements for water turbines and steam turbines are very similar since the oils are subjected to similar conditions and are required to serve the same functions, to lubricate, cool, protect against corrosion and be suitable for use in hydraulic systems. In addition they need to have good fluidity at low temperatures to allow proper circulation at the low bearing start temperatures.
Behran Turbine oils are used in circulating systems, antifriction bearings, enclosed gears, hydraulic systems, compressor crankcases and many other applications calling for extended service lubrication in industrial equipment, when following performance levels are recommended by manufacturers.
- BEHRAN Turbine oil Are approved by OEMS and are widely used in power generation plants in Iran, Iraq, Syria, Tajikistan.
PROPERTIES
The excellence of Behran Turbine oil is the combined result of selected base oils, refining methods and additives.Behran Turbine oils are made from the finest paraffinic base stocks, chosen for resistance to oxidation and refined by modern techniques to remove unstable and undesirable components, and carefully selected additives to enhance their inherent good qualities.Excellent oxidation stability. Protection against ursting of metal surfaces, high viscosity rang are some of the advantages of Behran Turbine oil, and is available in following ISO viscosity grades: 32,46,68,100 and 150 which can be used depending on bearing design, speed and operating temperature.
Key Performance features of Behran Turbine oil include:
- Extended life
- Outstanding oxidation characteristics
- Low sludging tendencies
- Long term corrosion protection
- Strong demulsibility performance
- Excellent filteration characteristics
- High temperature thermal stability
- Good Piston pump performance
PERFORMANCE SPECIFICATION
- General Electric GEK-32568 C
- German standards DIN 51515 part ½
- BS 489:1999
- Alstom HTGT90117
- Siemens TLV 901304
- jor-bidi'>BS 489:1999
- Alstom HTGT90117
- Siemens TLV 901304
- General Electric GEK-32568 C
- German standards DIN 51515 part ½
- BS 489:1999
- Alstom HTGT90117
- Siemens TLV 901304
Behran Turbine Oil Sp 1 has good performance in Low Temerature and can be used in gas, water and steam turbines and gas turbo compressors. Behran turbine oil SP1 MEET THE REQUIREMENTS OF GENERAL ELECTRIC gek32568C and German standards DIN 51515 . Also Behran Turbine oil EP in ISO viscosity grade 32, 46 which meet the requirements of Siemens TLV 901304 , General electric GEK- 32568C, Alstom HTGT 90117 are available.
Table view
| SPECIFICATION | Test Method | 32 | 46 | 68 | 100 | 150 | Sp1-32 | Sp1-46 |
|---|---|---|---|---|---|---|---|---|
|
Viscosity @ 40°C (cST) Viscosity @ 100°C (cST) |
ASTM D -445 |
32 5.5 |
46 7 |
68 8.5 |
100 11 |
150 14 |
32 5 |
46 7 |
| Viscosity Index | ASTM D -2270 | 99 | 98 | 95 | 95 | 95 | 104 | 104 |
| Density @ 15°C Kg/m3 | ASTM D -4052 | 868 | 870 | 875 | 882 | 888 | 885 | 870 |
| pour Point (max) °C | ASTM D -97 |
-12 |
-9 | -9 | -6 | -9 | -30 | -30 |
| Flash Point(MIN) °C | ASTM D -92 | 206 | 220 | 232 | 244 | 250 | 204 | 207 |
Packaging:

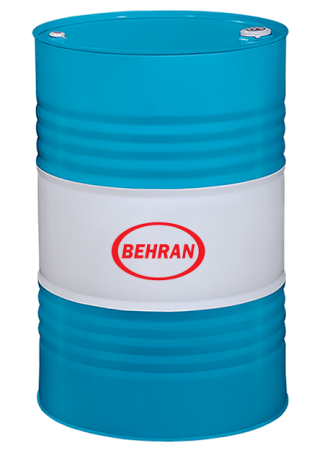

208 litre new steel drum
