INDUSTRIAL GEAR OIL
uses
Behran Industrial GearOil is suitable for using wherever industrial EP gear oil is required.
- It is recommended for heavily loaded gear sets including worm gears, industrial hypoid units and for gears that are subjected to shock loading.
- It is also suitable for using in plain bearings and in rolling contact (antifriction) bearings that are not affected by milad EP additives.
PROPERTIES
- Behran Industrial Gear Oil is a premium quality, general purpose industrial gear and bearing lubricant.It was developed to meet industrial requirements for lead free extreme pressure (EP) lubricants with high thermal stability. It has the excellent extreme pressure properties of the lead/sulfur type gear oils with can be replaced with them; it protects against foaming, separates readily from water and is non-corrosive to steel, copper and bronze.
- Behran Industrial Gear Oil Is available in following ISO viscosity grades: 46, 68, 100, 150, 220, 320, 460 and 1000 that meet the requirements of US Steel 224 specifications.
- Behran Industrial Gear Oil Operating temperatures are high ( the maximum recommended operating temperature is 110°c).
- The good oxidation and thermal stability of behran industrial gear oils maintains viscosity increase and sludge formation to very low levels at recommended operating temperatures.
- U.S.Steel 224
- DIN 51517 part 3(CLP)
- ANSI/AGMA 9005 E20
- David Brown S 1.53-101
- BEHRAN INDUSTRIAL GERAL OIL PS(based on poly alpha olefin)is a full synthetic industrial gear oil wich can be used in -30° c until 120 °c.Also
- BEHRAN INDUTRIAL GEAR OIL PG in iso viscosity grade 150,220,320&480 which are based on poly alkylene glycol,are available.
Table view
| SPECIFICATION | Test Method | 46 | 68 | 100 | 150 | 220 | 320 | 460 | 680 | 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
|
Kinematic Viscosity @ 40 °C (cSt) @ 100°C (cSt) |
ASTM D -445 |
46 6.7 |
68 8.5 |
100 11 |
150 14.5 |
220 19 |
320 24 |
460 30.5 |
680 42 |
1000 57 |
| Viscosity Index | ASTM D -2270 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 100 | 110 |
| pour Point °C | ASTM D -97 | -27 | -24 | -21 | -18 | -15 | -12 | -9 | -9 | -3 |
| flash Point(COC) °C | ASTM D -92 | 210 | 226 | 230 | 234 | 240 | 244 | 246 | 248 | 250 |
| Density @ 15°C Kg/m3 | ASTM D -4052 | 882 | 885 | 889 | 891 | 898 | 900 | 903 | 904 | 905 |
Packaging:

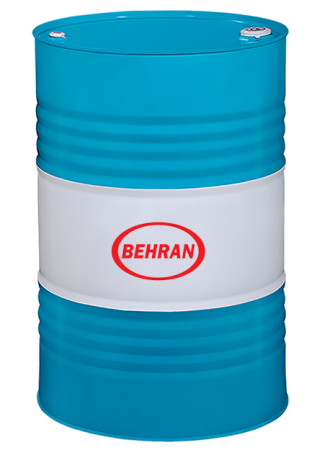

208 liter new steel drum
