TRASFORMER OIL II
USES
- Behran Transformer oil II is a high – efficiency electrical insulating oil which is suitable for use in large power transformers.
PROPERTIES
- Behran Transformer oil II is made from the finest naphthenic base stocks with highest purity, chosen for resistance to oxidation and refined b;y modern techniques.
- Behran Transformer oil II Doesn’t contain antioxidant additive and polychlorinated biphenyls (PCB’s).
- Has suitable viscosity to transfer heat from transformer part
- Low pour point makes it possible to use in very cold climate
- Ability to absorb gases which are produced in electrical discharge.
- Excellent electrical insulation because of high break down voltage and low dielectric dissipation factor
- Excellent oxidation and thermal stability which results to increase oil drain interval
- Without any polychlorinated biphenyls (PCB’S) and corrosive sulfur
- IEC 60296(2012
- BS 148:2009
- Astm d-3487 type (I)
Table view
| SPECIFICATION | Test Method | RESULT |
|---|---|---|
|
Kinematic Viscosity @ 40 °C (cSt)
@ -30°C (cSt)
|
ASTM D -445 |
9.2
1195
|
| Breakdown Voltage (kv) | IEC -156 | 55 |
| pour Point °C | ASTM D -97 | -54 |
| flash Point(COC) °C | ASTM D -92 | 148 |
| Density @ 15°C Kg/m3 | ASTM D -4052 | 888 |
Packaging:

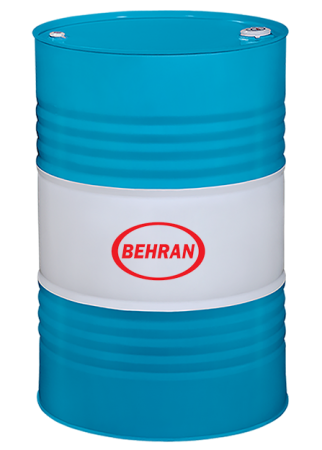

208 liter new steel drum
